DELTA MOBREY 246781AB HYDRASTEP ELECTRODE

Drumline Levelstep DL246781AB

Delta Mobrey Hydrastep 246781AB

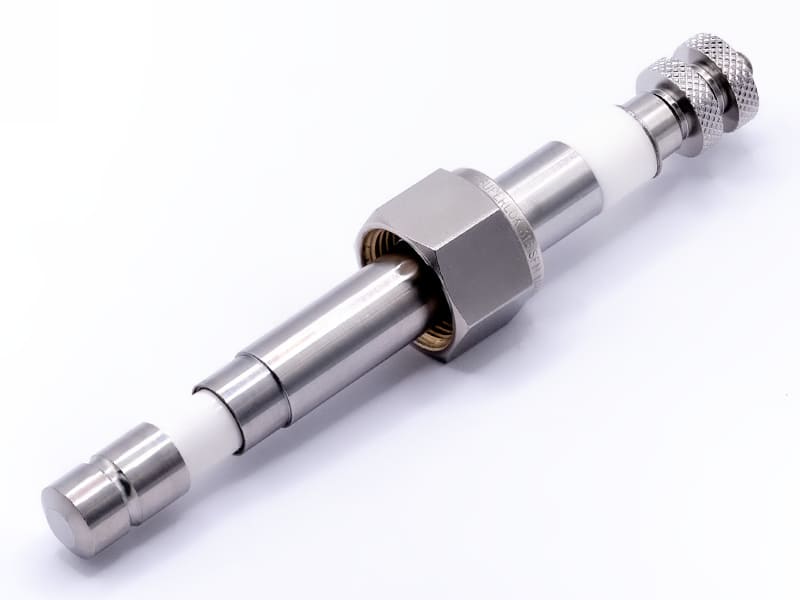

The 246781AB is a high-pressure probe from Delta Mobrey (Hydrastep). It is a supercritical probe that features a ZTA (zirconia toughened alumina) insulator and a 22mm AF Swagelok compression nut. The 246781AB is rated at 560 degrees C and 300 bar. This probe is used in the HP Series III water column with smaller 22mm AF inserts. Drumline offers its DL246781AB as a direct replacement for the 246781AB probe.

Product Specification

CHARACTERISTIC Drumline DL246781AB
Hydrastep P/N 246781AB
Body Material Stainless steel
Insulator Material Brazed Zirconia
Maximum Temperature 560 Deg C / 1040 F
Maximum Pressure 300 bar / 4351psi
Warranty 1 Years
Country of Origin United Kingdom
Customs Code 902690
